LXF, Electric Actuator, Flat Table Type, Short Stroke, Slide Screw

LXF, Electric Actuator, Flat Table Type, Short Stroke, Slide Screw

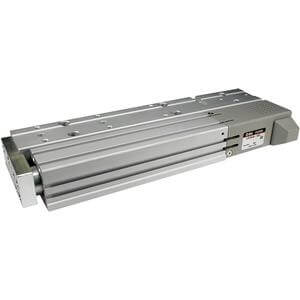

The LXF series is a low profile, short stroke electric actuator. The system is designed to be compact for easy system integration. Basic structure of the LXF consists of a linear motion guide, a stepper motor and an ACME lead screw. The standard stepper motor can be replaced with motors from other manufacturers.

5 phase stepper motor, without motor brake
Low profile slide table type
Slide screw, ø8mm-6mm & 12mm lead
Standard stroke up to 100mm
Auto switch & proximity switch available
