10-32 UNF
Port size
Fluid
Proof pressure
Max. operating pressure
Min. operating pressure
Ambient and fluid temperature
Option
Weight (g)
Controlled flow
Free flow
AS1200-M3
AS1400-M3
AS12 0-M5
AS22 0-01 AS22 0-02 AS32 0-03 AS42 0-04
M5 x 0.8
1/8 1/4 3/8 1/2
AS12 0-U10/32
Specifications
Specifications
Model
1.5 MPa
1 MPa
0.1 MPa
Air
–5 to 60°C (No freezing)
—
Round lock nut
With seal, Round lock nut, Nickel plated
18110664291063
20
0.06
0.2
0.4
1700
5.2
0.25
0.3
920
2.8
0.25
0.2
460
1.4
0.3
0.3
230
0.7
0.25
0.2
105
0.32
0.2
0.4
Symbol Bore size
Applicable
series
M3
M5
U10/32
01
02
03
04
M3 x 0.5
M5 x 0.8
10-32 UNF
1/8
1/4
3/8
1/2
AS1200-M3
AS1400-M3
AS120-M5
AS12
0-U10/32
AS220-01
AS220-02
AS320-03
AS420-04
M3 x 0.5
1.05 MPa
0.7 MPa
0.1 MPa

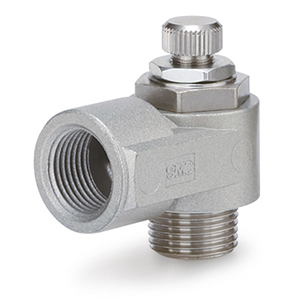

Speed Controller: Standard Type
Elbow Type (Metal Body)
AS Series
AS4200-04
AS1400-M3
AS1200-M3
AS3200-03
AS2200-01
AS1200-M5
AS2200-02
Minimizes installation time
and cost
Fittings and tubing are not necessary
because this type screws directly into the
actuator. Thus, piping labor and cost can
be eliminated.
Body swivels 360°
Swivel type allows free setting of piping.
Speed may be accurately
controlled even at low
speeds.
Able to control and set a
constant speed easily.
Retainer prevents accidental
loss of needle.
Symbol
Flow rate L/min (ANR)
Sonic conductance dm
3
/(s⋅bar)
Critical pressure
ratio
Controlled flow
Free flow
How to Order
1
2
3
4
M3, M5 standard
1
8
8
3
2
1
1
4
,
standard
standard
standard
∗ Male thread comes with R thread.
Nil
Symbol
Metric thread (M3, M5)
Unified thread (10-32 UNF)
NPTN
G
∗
F
Cylinder side
R
Tube side
Rc
01 SAS 2 2 0 0
Body size
Type
Direct cylinder
elbow type
Direct cylinder
flat elbow type
2
4
Control type
Thread type
Meter-out
Meter-in
0
1
Option
Bore size
S
N
None
With seal
∗If more than one option is required,
write option part numbers in the
order of “S”, “N”.
Nil
Electroless nickel plated
Lock nut option
J
Hexagon lock nut
Round lock nut
Nil
Made to Order
Refer to page 647 for details.
Note) M3 and M5 sizes:
s (with seal) is not
necessary.
RoHS
Note 1) Flow rate values are measured at 0.5 MPa and 20°C.
Note 2) Meter-in type not available on AS1200-M3, AS1400-M3.
Note 3) Distinction between meter-out/meter-in types by appearance.
Those are distinguished by the lock nut. The meter-out type is zinc chromated (the round
lock nut is electroless nickel plated), while the meter-in type is black zinc chromate
plated.
Note 4) AS120, AS1400, AS220, AS320: Brass parts are electroless nickel plated, provided
as standard. (N specifications)
646
Made to Order
(For details, refer to page 647.)
Symbol Specifications
-X12
Lubricant: Vaseline
-X21
Grease-free (Seal: Fluorine-coated) + Throttle valve (Without check valve)
-X214
Throttle valve (Without check valve)
B
