ZL1 12
K112 5 M Z
With valve
Without valve
ZL1
1.2 mm
12
Nozzle diameter
Built-in silencer
Port exhaust
Nil
P
Exhaust type
Non-locking push type
Locking slotted type
Nil
D
Manual override
Without light/surge voltage suppressor
With surge voltage suppressor
With light/surge voltage suppressor
With light/surge voltage suppressor (Non-polar type)
Nil
S
Z
U
Light/Surge voltage suppressor
With supply and release valves
With supply valve
K1
K2
Supply valve/Release valve combination
Grommet
L plug
connector
M plug
connector
Lead wire length 0.3 m
Lead wire length 0.6 m
Lead wire length 0.3 m
Without lead wires
Without connector
Lead wire length 0.3 m
Without lead wires
Without connector
G
H
L
LN
LO
M
MN
MO
Electrical entry
24V
12V
6V
5V
3V
100V
200V
110V[115V]
220V[230V]
DC specifications
AC specifications (50/60 Hz)
5
6
V
S
R
1
2
3
4
Rated voltage
Rc1/2
G1/2
(3)
1/2-14 NPT
1/2-14 NPTF
Nil
F
N
T
Exhaust port (EXH) thread type
(Port exhaust only)
∗ Type U is 24 or 12 VDC only.
∗ Since surge voltage is prevented by a rectifier in the case of
AC, there is no type “S”.
Note 3)
The thread ridge shape is
conforming to G thread
standard (JIS B0203), but
other shapes are not
conforming to ISO16030
and ISO1179.
(Applicable only when the vacuum
pressure sensor specification is “D” for
digital pressure switch for vacuum)
(Applicable only when the vacuum
pressure sensor specification is “D”
for digital pressure switch for vacuum)
Note 1) W/ unit switching function is not
permitted to sell for the domestic use
in Japan, because the new Weight
and Measure Act has been
implemented since October
,
99.
Note 2) Fixed unit: kPa
None
Vacuum port adaptor Rc 1/8
Vacuum pressure gauge
Digital pressure switch for vacuum
Nil
GN
G
D
Vacuum pressure sensor
Lead wire with connector (Length 2 m)
L
Lead wire specifications
With unit switching function
SI unit only
With unit switching function
(Initial value psi)
Nil
M
P
Unit specifications
NPN open collector 1 output
PNP open collector 1 output
NPN open collector 2 outputs
PNP open collector 2 outputs
NPN open collector 1 output + Analog voltage output
NPN open collector 1 output + Analog current output
PNP open collector 1 output + Analog voltage output
PNP open collector 1 output + Analog current output
N
P
A
B
C
D
E
F
Output specifications
(Applicable only when the vacuum
pressure sensor specification is “D” for
digital pressure switch for vacuum)
1068
How to Order

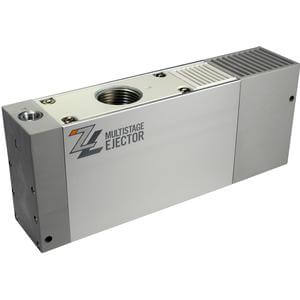

Series ZL112
Multistage Ejector
