SDY
SDZCN
SDZEN
Kit type/Electrical entry/Cable length
IP65 compliant
IP65 compliant
IP65 compliant
IP65 compliant
IP65 compliantIP40 compliant
IP40 compliant
IP40 compliant
S
kit
(Serial transmission: EX600 integrated type (I/O))
S
kit
(Serial transmission: EX250 integrated type (I/O))
SD0
SDQ
SDN
SDV
Without SI unit
DeviceNet™
PROFIBUS DP
CC-Link
1 to 12
stations
(24)
SI unit: EX250
SI unit: EX126
SDVB
1 to 8 stations
(16)
S
kit
(Serial transmission: EX126 integrated
type (Output))
CC-Link
1 to 12
stations
(24)
F
kit
(D-sub connector)
D-sub connector (25P) without cable
D-sub connector (25P) with 1.5 m cable
D-sub connector (25P) with 3.0 m cable
D-sub connector (25P) with 5.0 m cable
Flat ribbon cable (26P) without cable
Flat ribbon cable (26P) with 1.5 m cable
Flat ribbon cable (26P) with 3.0 m cable
Flat ribbon cable (26P) with 5.0 m cable
∗ Numbers in parentheses represent the maximum number of solenoids in case of mixed single and double wiring. The maximum
number of stations is determined by the total number of solenoids. When ordering mixed wiring, please add the option symbol “-K”.
1 to 12
stations
(24)
T
kit
(Terminal block box)
P
kit
(Flat ribbon cable)
1 to 12
stations
(24)
L
kit
(Lead wire)
M
kit
(Circular connector)
∗ The maximum number of stations displayed in parentheses is applied to the special wiring specifications. (Option “-K”)
Note 1)
When selecting SI units with SDTC or SDTD specifications, there are limits to the supply current from the SI unit to the input block or valve. Refer to the operation manual for details.
Note 2) When selecting SI units with SDZCN specifications only, IP40 is compatible. (All other SI units are IP65 compliant.)
SDTA
SDTB
SDTC
Note 1)
SDTD
Note 1)
AS-Interface, 8 in/8 out, 31 slave modes, 2 power supply systems
AS-Interface, 4 in/4 out, 31 slave modes, 2 power supply systems
AS-Interface, 8 in/8 out, 31 slave modes, 1 power supply systems
AS-Interface, 4 in/4 out, 31 slave modes, 1 power supply systems
CANopen
ControlNet (IP40)
Note 2)
EtherNet/IP™
1 to 4
stations (8)
1 to 2
stations (4)
1 to 4 stations
(8)
1 to 2 stations
(4)
1 to 12
stations
(24)
FD0
FD1
FD2
FD3
PD0
PD1
PD2
PD3
TD0
Terminal block box
1 to 10 stations
(20)
LD0
LD1
LD2
Lead wire (25 cores) 0.6 m lead wire
Lead wire (25 cores) 1.5 m lead wire
Lead wire (25 cores) 3.0 m lead wire
MD0
MD1
MD2
MD3
Circular connector (26P) without cable
Circular connector (26P) with 1.5 m cable
Circular connector (26P) with 3.0 m cable
Circular connector (26P) with 5.0 m cable
1 to 12
stations
(24)
SD60
SD6Q
SD6N
SD6V
Without SI unit
DeviceNet™
PROFIBUS DP
CC-Link
1 to 12 stations
(24)
SI unit: EX600
S
kit
(Serial transmission: EX500 gateway type)
Note) A separate gateway unit and communication cable are required.
IP65 compliant
SD0
SDA2
Without SI unit
DeviceNet™, PROFIBUS DP, CC-Link, EtherNet/IP™
1 to 8 stations
(16)
SI unit: EX500
25 pins
26 pins
25-core cable
26 pins
4
Series VS 8-2/VS 8-4
S
R
S
R
Conforms to ISO 15407-2 Standard

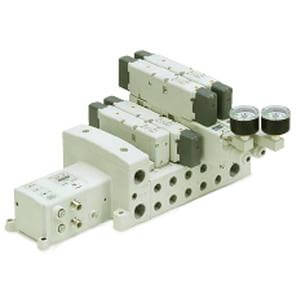

5 Port Solenoid Valve/Plug-in Type
