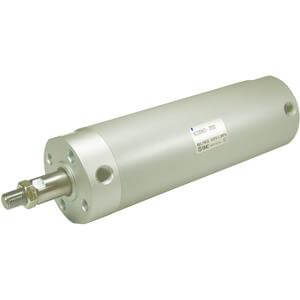

C(D)G1, Air Cylinder, Double Acting, Single Rod w/X Options

• Magnet

  • None
  • Built-In

  Drawing

  Clear

• Mounting

  • Basic Style
  • Double Clevis
  • Front Flange
  • Rear Flange
  • Axial Foot
  • Rear Trunnion
  • Front Trunnion

  Drawing

  Clear

• Style

  • Non-lube Air Cushion
  • Non-lube Rubber Bumper

  Drawing

  Clear

• Bore Size

  • 20mm
  • 25mm
  • 32mm
  • 40mm
  • 50mm
  • 63mm
  • 80mm
  • 100mm

  Drawing

  Clear

• Thread

  • Rc (or M5 Depending on Style, Bore Size, and Thread Combinations)
  • NPT, [ø20 to ø100 Rubber Bumper, ø32 to ø100 Air Cushion
  • G

  Drawing

  Clear

• Piping

  • Screw-in Piping
  • Built-in One-Touch Fitting

  Drawing

  Clear

• Stroke

  • 25mm
  • 50mm
  • 75mm
  • 100mm
  • 125mm
  • 150mm
  • 200mm
  • 250mm
  • 300mm
  • 350mm
  • 400mm
  • 450mm
  • 500mm
  • 600mm
  • 700mm
  • 800mm
  • 900mm
  • 1000mm
  • 1100mm
  • 1200mm
  • 1300mm
  • 1400mm
  • 1500mm

  Drawing

  Clear

• Stroke Adjust Symbol

  • None
  • 0 to 25mm
  • 0 to 50mm

  Drawing

  Clear

• Rod Boot

  • None
  • Nylon Tarpaulin
  • Heat Resistant Tarpaulin

  Drawing

  Clear

• Auto Switch

  • No Switch
  • G59W--Solid State, 2-color Indication, 3 Wire NPN
  • G5P--Solid State, Gen. Purpose, 3 Wire PNP
  • G5PW--Solid State, 2-color Indication, 3 Wire PNP
  • H7C--Solid State, General Purpose, 2 Wire, Connector
  • H7NF--Solid State, Diagnostic, 4 Wire NPN, Grommet, In-line
  • K59--Solid State, Gen. Purpose, 2 Wire
  • K59W--Solid State, 2-color Indication, 2 Wire
  • G59--Solid State, Gen. Purpose,3 Wire NPN
  • G59F--Solid State, Diagnostic, 4 Wire NPN
  • C80C--Reed, DC Volt >5 <24, AC Volt <100, Connector
  • B54--Reed, DC Volt >5 <24, AC Volt <200, LED
  • B59W--Reed, DC Volt >5 <24, 2-color Indication
  • B64--Reed, DC Volt >5 <24, AC Volt <200
  • C73C--Reed, DC Volt >5 <24, LED, Connector
  • G5BA--Solid State, Water Resist, 2 Wire
  • H7BA--Solid State, Water Resist., 2 Wire
  • M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal
  • M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal
  • M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal
  • M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal
  • M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal
  • M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal
  • A90--Reed, AC Volt, Horizontal
  • A93--Reed, DC Volt, AC Volt, LED, Horizontal
  • A96--Reed, DC Volt, LED, Horizontal
  • B53--Reed, DC Volt >5 <24, LED
  • C73--Reed, DC Volt >5 <24, AC Volt <100, LED
  • C76--Reed, DC Volt <5, LED
  • C80--Reed, DC Volt >5 <24, AC Volt <100
  • G5NT--Solid State, With Timer, 3 Wire NPN
  • H7A1--Solid State, Gen. Purpose, 3 Wire NPN
  • H7A2--Solid State, Gen. Purpose, 3 Wire PNP
  • H7B--Solid State, Gen. Purpose, 2 Wire
  • H7BW--Solid State, 2-color Indication, 2 Wire
  • H7NW--Solid State, 2-color Indication, 3 Wire NPN
  • H7PW--Solid State, 2-color Indication, 3 Wire PNP
  • M9BA--Solid State, Water Resist., 2 Wire, Horizontal
  • M9BAV--Solid State, Water Resist., 2 Wire, Vertical
  • M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical
  • M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical
  • M9NA--Solid State, Water Resist., 3 Wire NPN, Horizontal
  • M9NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical
  • M9PA--Solid State, Water Resist., 3 Wire PNP, Horizontal

  Drawing

  Clear

• Lead Wire or Prewired Connector

  • 0.5m (Or None in the Case of No Switch)
  • 3m
  • No Lead Wire
  • 5m
  • 0.5m Cord Length, M8-3 Pin Connector
  • 0.5m Cord Length, M8-4 Pin Connector
  • 0.5m Cord Length, M12-4 Pin Connector
  • 1.0m Cord Length, M8-3 Pin Connector
  • 1.0m Cord Length, M8-4 Pin Connector
  • 1.0m Cord Length, M12-4 Pin Connector
  • 1m
  • 0.3m Cord Length, M12-4 Pin Connector, 3 & 4 Out

  Drawing

  Clear

• Number

  • 3 pcs.
  • 2 pcs. (Or None in the Case of No Switch)
  • 1 pc.
  • 4 pcs.

  Drawing

  Clear

• X Option

  • XB13 [Low Speed Cylinder (5~50mm/s)]
  • XB6 [Heat Resistant Cylinder (150°C)]
  • XB7 [Cold Resistant Cylinder (-40°C)]
  • XB9 [Low Speed Cylinder (10~50mm/s)]
  • Auto Switch Rail Right Side Mounted
  • Auto Switch Rail Left Side Mounted
  • Head Cover Axis Direction Port
  • Packing Fluoro Rubber
  • Coil Scraper
  • Orifice Dia. of Port Enlarged
  • Heavy Duty Scraper
  • Built-In Shock Absorber, Head Cover Side
  • Piston Rod, Rod End Nut SUS
  • Long Stroke Option for U.S. Only
  • Adjustable Stroke, Extension Type
  • Adjustable Stroke, Retraction Type

  Drawing

  Clear
