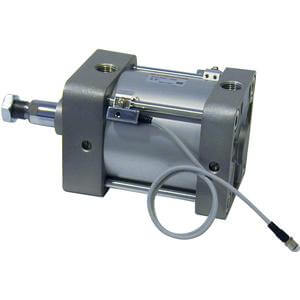

NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod w/Options

• Magnet

  • None
  • Built-in

  Drawing

  Clear

• Mounting

  • Basic
  • Single Detachable Rear Clevis
  • Detachable Rear Clevis
  • Front Flange
  • Rear Flange
  • Head trunnion
  • Foot
  • Side Tapped
  • Side Lug
  • Center trunnion
  • Rod Trunnion
  • Double Rear Clevis

  Drawing

  Clear

• Bore Size

  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3 1/4"
  • 4"

  Drawing

  Clear

• Stroke

  • 1"
  • 2"
  • 3"
  • 4"
  • 5"
  • 6"
  • 7"
  • 8"
  • 10"
  • 12"
  • 14"
  • 16"
  • 18"
  • 20"
  • 24"
  • 28"
  • 30"
  • 40"
  • 50"
  • 60"
  • 70"
  • 72"

  Drawing

  Clear

• Option

  • Both Ends (Air Cushion)
  • Head End Air Cushion
  • Nylon Boot & Head End Air Cushion
  • Neoprene Boot & Head End Air Cushion
  • Nylon Boot & Both Ends Air Cushion
  • Nylon Boot & No Cushion
  • Nylon Boot & Rod End Air Cushion
  • Neoprene Boot & Both Ends Air Cushion
  • Neoprene Boot & No Cushion
  • Neoprene Boot & Rod End Air Cushion
  • No Cushion
  • Rod End Air Cushion

  Drawing

  Clear

• Adjustment Range

  • Not Applicable
  • 0 to 1"
  • 0 to 2"

  Drawing

  Clear

• Auto Switch

  • No Switch
  • A53--Reed, DC Volt >5<24, LED
  • J59W--Solid State, 2-color Indication, 2 Wire
  • A54--Reed, DC Volt >5<24, AC Volt <200, LED
  • A56--Reed, DC Volt<5, LED
  • A64--Reed, DC Volt >5<24, AC Volt <200
  • A67--Reed, DC Volt >5<24
  • F59--Solid State, Gen. Purpose, 3 Wire NPN
  • F59F--Solid State, Diagnostic, 4 Wire NPN
  • F59W--Solid State, 2-color Indication, 3 Wire NPN
  • F5BA--Solid State, Water Resist., 2 Wire
  • F5NT--Solid State, With Timer, 4 Wire NPN
  • F5P--Solid State, Gen. Purpose, 3 Wire PNP
  • F5PW--Solid State, 2-color Indication, 3 Wire PNP
  • J59--Solid State, Gen. Purpose, 2 Wire
  • A59W--Reed, DC Volt >5<24, 2-color Indication, 2 Wire
  • J51--Solid State, Gen. Purpose, 2 Wire
  • M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal
  • M9BA--Solid State, Water Resist., 2 Wire, Horizontal
  • M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical
  • M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal
  • M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical
  • M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal
  • M9NA--Solid State, Water Resist., 3 Wire NPN, Horizontal
  • M9NAV--Solid State, Water Resist., 3 Wire NPN, Vertical
  • M9NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical
  • M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal
  • M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal
  • M9PA--Solid State, Water Resist., 3 Wire PNP, Horizontal
  • M9PAV--Solid State, Water Resist., 3 Wire PNP, Vertical
  • M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical
  • M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal
  • M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical

  Drawing

  Clear

• Lead Wire or Prewired Connector

  • 0.5m (Or None in the Case of No Switch)
  • 3m
  • 0.5m Cord Length, M8-3 Pin Connector
  • 0.5m Cord Length, M8-4 Pin Connector
  • 0.5m Cord Length, M12-4 Pin Connector
  • 1.0m Cord Length, M8-3 Pin Connector
  • 1.0m Cord Length, M8-4 Pin Connector
  • 1.0m Cord Length, M12-4 Pin Connector
  • 5m
  • No Lead Wire
  • 1m
  • 0.3m Cord Length, M12-4 Pin Connector, 3 & 4 Out

  Drawing

  Clear

• Number

  • 3 pcs.
  • 2 pcs. (Or None in the Case of No Switch)
  • 1 pc.
  • 4 pcs.

  Drawing

  Clear

• X Option

  • None
  • Oversized Rod Cylinder
  • XB9 [Low Speed Cylinder (10~50mm/s)]
  • Piston Rod and Rod End Nut SUS
  • Adjustable Stroke, Extension Type
  • Adjustable Stroke, Retraction Type
  • With Coil Scraper
  • Long Stroke Option for U.S. Only

  Drawing

  Clear

• Speed Control Type

  • Right Angle
  • Universal

  Drawing

  Clear

• Applicable Tubing

  • 1/4"
  • 5/16"
  • 3/8"
  • 1/2"

  Drawing

  Clear

• Suffix

  • Required Selection w/Speed Control

  Drawing

  Clear

Availability

• • All
  • Today
  • Tomorrow
  • 5 Days

  Clear
