Data
Mounting style

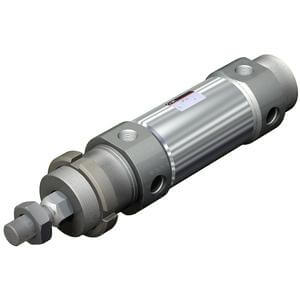

Cylinder: Standard/Non-rotating Type
Double Acting, Single/Double Rod
Series C76
ø32, ø40
How to Order
C
Double acting
Double rod
W
C
Double acting
Single rod
K
D
D
E32 100
E
C
C
R2
76
76
J
JJ
A
B
32 100
Double rod
Mounting bracket
Bore size (mm)
Mounting Bracket Part No.
Mounting bracket
32 40
Accessory
Flange, Foot
(2 pcs. with mounting
nut 1 pc.)
Flange, Foot (1 pc.)
Tr unnion
Clevis
Single knuckle joint
Double knuckle joint
Floating joint
C76F32B
C76F32A
C76T32
C76C32
KJ10DA
GKM10-20A
JA25-10-150
C76F40B
C76F40A
C76T40
C76C40
KJ12DA
GKM12-24A
JA40-12-175
Part no.
Note
Bore size
(mm)
Standard
C76-32PS
C76-40PS
Non-rotating
C76K-32PS
C76K-40PS
Type
Nil
K
Standard
Non-rotating rod
(Rubber cushion only)
Every set includes:
1 rod seal
1 seal retaining washer
1 retaining ring
Suitable also C76 series
Built-in magnet
Nil
D
None
Built-in magnet
E
∗
F
∗∗
Y
∗∗
Double end
Front nose
Front nose in line port
Symbol
Cushion
Bore size
Standard stroke (mm)
10, 25, 40, 50, 80, 100,
125, 160, 200, 250, 300
Bore size (mm)
32
40
Nil
C
Rubber cushion (Standard)
Air cushion (Only “E” execution)
Max. stroke (mm)
1000
1. Cylinder without auto switch, Bore size: 32, Stroke: 100, Double acting/
Single rod and Double end type.
C76E32-100 1 pc. ······ Cylinder
2. Cylinder without auto switch, Bore size: 32, Stroke: 50, Double acting/Double
rod type and Rod and head foot mounting.
C76WE32-50 1 pc. ······ Cylinder
C76F32B 2 pcs. ·····Foot bracket
3. Cylinder with auto switch (Band mounted type, 2 pcs.), Bore size: 40,
Stroke:100, Double acting/Single rod, Front nose in line port type and
Flange mounting.
CD76Y40-100-B 1 pc. ······ Cylinder
C76F40A 1 pc. ······ Flange mounting
D-C73L 2 pcs. ·····Auto switch
BM2-040 2 pcs. ·····For auto switch mounting band
4. Cylinder with auto switch (Rail mounted type, 2 pcs.), Bore size: 40, Stroke:
50, Single acting/Spring return, Front nose type and Trunnion mounting.
CD76F40-50S-A 1 pc. ······ Cylinder
C76T40 1 pc. ······ Trunnion mounting
D-A73L 2 pcs. ·····Auto switch
5. Non-rotating: Cylinder without auto switch, Bore size: 32, Stroke: 100,
Double acting/Single rod and Double end type.
C76KE32-100 1 pc. ······ Cylinder
R
R2
Option
∗ In the case of double acting/double rod.
Rod boot
Nil
J
K
JJ
KK
Without rod boot
Nylon tarpaulin one side
Heat resistant tarpaulin one side
Nylon tarpaulin both sides
Heat resistant tarpaulin both sides
Auto switch mounting type
Rail mounting
Band mounting
A
B
Stainless steel piston rod, rod end nut
and mounting nut
Stainless steel piston rod and rod end nut
Applicable auto switches and bands are shown
on pages 6-10-45 to 6-10-46. Please order auto
switches and bands separately.
32
40
∗
∗
Mounting
∗ Double acting, Double rod
type: Only double end type. (E)
∗∗ Except air cushion type.
Replacement Parts
Example of How to Order
Note) Please refer to page 6-10-46 for additional
options. Only one option can be selected.
Stroke
