JIS symbol
IN/OUT straight piping
Easy installation and removal
with one-touch fittings
Light and compact molded
resin parts
Cartridge type allows
element replacement
In-line type air suction filter is used to
prevent vacuum equipment trouble
from occurring due to dust in the air
Model
ZFC050-02
ZFC050-23
ZFC050-04
ZFC100-04
ZFC100-06
ZFC200-06
ZFC200-08
ZFC051-01
ZFC051-03
ZFC101-03
ZFC101-07
ZFC201-07
ZFC201-09
Port size (Applicable tubing O.D.)
Recommended flow rate
Note)
(l/min (ANR))
RoHS
IN side, OUT side
ø2
ø3.2
ø4
ø4
ø6
ø6
ø8
ø1/8"
ø5/32"
ø5/32"
ø1/4"
ø1/4"
ø5/16"
2
7
10
10
20
30
50
7
10
10
20
30
50
Mass
(g)
4.9
4.3
11.5
21.5
4.3
11.5
21.5
Internal capacity
(cm
3
)
1.7
1.7
4.5
6
1.7
4.5
6
Metric size
Inch size
Note) Flow rate when the initial pressure drop is 3 kPa or less.
Model
Note 1) Do not use in atmospheres of chemicals, or where there is direct contact with it since the body may be
damaged. (Alcohol, acetone, etc. may cause damage to the product.)
Note 2) Do not use in a line where a pressurized condition is maintained since the body may be damaged.
Note 3) Polyurethane is only applicable for the ZFC050-02.
Air, Nitrogen
–100 to 0 kPa
Max. 0.5 MPa (Unable to hold when pressurized)
0 to 60°C (No freezing)
10 μm (Filtration efficiency 95%)
[ZFC10�, 20�] 0.15 MPa [ZFC05�] 0.10 MPa
Nylon, Soft nylon, Polyurethane, Soft polyurethane
Fluid
Note 1)
Operating pressure
Vacuum release pressure
Note 2)
Operating and ambient temperature range
Filtration
Element differential pressure resistance
Applicable tubing material
Note 3)
Specifications
Made to Order

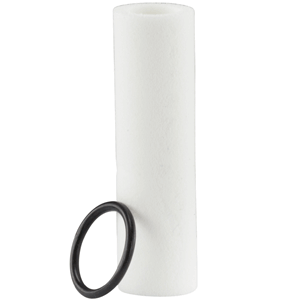

Replacement Element Part No.
Part no.
Applicable
filter model
Set description
Spare element O-ring for cover
I-68S-A
I-62S-A
I-63S-A
ZFC05
ZFC10
ZFC20
Element size
(mm)
ø6 x ø4 x L25
ø12 x ø8 x L20
ø16 x ø12 x L25
—
10 pcs.
10 pcs.
10 pcs.
10 pcs.
10 pcs.
Note) Spare elements and O-rings for the cover (Applicable filter: ZFC10, 20) are sold
in sets of 10 pieces each.
ZFC 0 0205
Metric size
ZFC 105 01
B
B
Inch size
Inch size
(Release button: Orange)
Metric size
(Release button: Light gray)
Symbol
Flow rate (l /min (ANR))
Filtration area (mm
2
)
Body type
05
10
20
10
20
50
470
750
1255
X17
Metal case
*Do not wipe with alcohol, etc.
It may cause damage to the parts.
Principal Parts Material
Description
Case
Cover
Element
O-ring, Seal
Material
Special clear nylon*
PBT
PVF
NBR
Refer to page 1115 for details.
Option (With/Without bracket)
Symbol
Nil
B
Option
None (Without bracket)
With bracket
Metric size
Applicable tubing size
Symbol
Bore size
Applicable model
02
23
04
06
08
ø2
ø3.2
ø4
ø6
ø8
ZFC05 ZFC10 ZFC20
Inch size
Symbol
Bore size
Applicable model
01
03
07
09
ø1/8"
ø5/32"
ø1/4"
ø5/16"
ZFC05 ZFC10 ZFC20
Made to Order
(Refer to page 1115 for details.)
How to Order
1111
Air Suction Filter / In-line Type
With One-touch Fittings
Series ZFC
