4
How to Order
Specifications
Model
MACM2-12 MACM4-20 MACM6-30
MACM10-50
Max. allowable load weight lbf [KN] 450 [2] 900 [4] 1350 [6] 2250 [10]
Stroke [mm] 12 20 30 50
Table center movable range [mm] ø24 ø40 ø60 ø100
Centering accuracy [mm]
±1 or less
Cylinder for
lock
Action
Double acting
Fluid
Air
Operating temperature
32 to 140°F [0 to 60°C]
Operating pressure
58 to 102 psi [0.4 to 0.7 MPa]
Proof pressure
145 psi [1 MPa]
Lubrication
Non-lube
Weight [kg] 0.7 1 2 7
X1144 P20
MACM
Centering unit Made to order (Table material)
X114
Stainless steel
Ultra high molecular weight polyethylene
Cast nylon
X115
X116
Relief port
Nil
No
V
Yes
Sensor type
Nil
Unsupported
P
Port side photo sensor
mounted type
B
Port back side photo sensor
mounted type
Stroke
Symbol
Stroke (Applicable model)
12
12 mm (MACM2)
20
20 mm (MACM4)
30
30 mm (MACM6)
50
50 mm (MACM10)
Allowable load weight
Symbol Allowable load weight
2
450 lbf [2 KN]
4
900 lbf [4 KN]
6
1350 lbf [6 KN]
10
2250 lbf [10 KN]

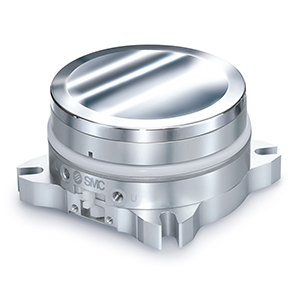

Centering Unit
MACM Series
Caution
1. Use the product within the movable range.
2. Use the product within the allowable load weight.
3. Load workpieces within the load range.
4. Load workpieces within the allowable inclination range.
5. Do not use the product in applications where excessive
external force or impact force is applied to it.
Improper handling includes the following:
·
Applying impact on the side of the table to move it to full stroke
· Continuously moving the table in a circle while the table is
at a full stroke
· Repeating reciprocation of the table at full stroke
· Holding the body and swinging the table
6. Prevent over strokes.
7. Secure the table in place when transporting the product
or the equipment it is mounted on.
8. This is not a clean room series product.
Operating Precautions
Precautions
Be sure to read this before handling
the products. For safety instructions,
actuator and auto switch precautions,
refer to the “Handling Precautions for
SMC Products” and the “Operation
Manual” on the SMC website: http://
www.smcworld.com
