Air operated
Built-in solenoid valve
∗ Built-in solenoid valve only
RoHS
FLUID OUT
FLUID OUT
AIR SUP
AIR EXH
FLUID IN
AIR SUP/EXH
FLUID IN

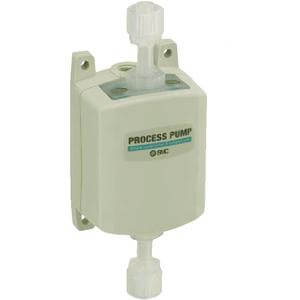

Process Pump (Diaphragm Pump)
Body Wetted Parts: Polypropylene/Stainless Steel
Built-in Solenoid Valve/Air Operated (External switching type)
PB1000A Series
01
Rc, NPT, G 1/8 female thread
Rc, NPT, G 1/8 female thread
Polypropylene (PP), Stainless steel (SUS316)
PTFE
PTFE, Polypropylene (PP)
FKM
0 to 0.6 MPa
0.2 to 0.7 MPa
40 L/min (ANR) or less
Up to 2.5 m (dry state inside the pump)
64 dB (A) or less
(Option: With silencer AN120-M5)
Actuation
Port size
Material
Discharge
Note 1)
Average discharge pressure
Pilot air pressure
Air consumption
Suction head
Note 1)
Noise
Withstand pressure
Diaphragm life (Reference)
Fluid temperature
Ambient temperature
Recommended operating cycle
Pilot air solenoid valve recommended Cv value
Weight
Mounting orientation
Packaging
Maximum viscosity
Power supply voltage
Power consumption
Model
PB1011A PB1013A
Built-in solenoid valve
M5 x 0.8 female thread
Air operated
—
Main fluid suction/discharge port
Pilot air
Body wetted parts
Diaphragm
Check valve
Liquid contact seals
Symbol
Supply port
Exhaust port
1 A
Actuation
Symbol
1
3
Actuation
Built-in solenoid valve
Air operated
Nil
X16
X47
None
Liquid contact seals SF7000
With bracket which is interchangeable with previous type
Symbol
Nil
N
F
Thread type
Type
Rc
NPT
G
Nil
B
N
Option
Made to Order
None
With foot
With silencer
∗∗
Option
Symbol
Applicable actuation
Built-in solenoid valve
Air operated
—
—
0.18 kg
24 VDC
0.35 W
0.2
Note 3)
0.11 kg
—
—
Symbol
01
Port size
Port size
1/8
∗ Each of the values above are for normal temperatures and clear water.
∗ For related products, refer to pages 622 to 623.
∗
Faulty sealing of the check valves or accumulation of dust may cause operation to stop, so slurry
processing is not available.
∗Refer to page 586 for maintenance parts.
Note 1) The values given for discharge and suction head are for no piping. Values will depend on
piping conditions.
Note 2)
Applicable up to 2000 mL/min by using a solenoid valve with a large Cv value (Cv value of 0.5 or more).
Note 3) With low operating cycles, even a valve with a small Cv value can be operated.
1.05 MPa
30 million cycles
0 to 50°C (No freezing, heat cycle not applied)
0 to 50°C (No freezing, heat cycle not applied)
1 to 10 Hz
FLUID OUT port upside
General environment
100 mPa·s
How to Order
∗ When option is more than one,
suffix in alphabetical order.
∗∗ For AIR EXH: AN120-M5
∗ Only PB1013A, air-operated type is available to be
made to order.
Specifications
PB101
Built-in Solenoid Valve
PB1011A
Air Operated
PB1013A
Silencer
Foot
8 to 2000 mL/min 8 to 1000 mL/min
Note 2)
(For details, refer to page 588.)
584
