How to Order
Specifications
Fluid Air
Ambient and fluid temperature −40 to 80°C (with no freezing)
Proof pressure 3.0 MPa
Maximum operating pressure 2.0 MPa
Set pressure range 0.05 to 0.85 MPa
Nominal filtration rating 5 μm
Drain capacity (cm
3
) AW30: 20, AW40: 80
Construction Relieving type
Weight (kg) AW30: 1.19, AW40: 3.40
Applicable Model
Model
AW30 AW40
Port size 1/4, 3/8 1/4, 3/8, 1/2, 3/4
Symbol Description
Kq
Body size
30 40
Kw
Thread type
Nil
Rc
N
NPT
F
G
+
Ke
Port size
02
1/4
03
3/8
04
1/2 —
06
3/4 —
+
Kr
Option
i
a
Float type
auto drain
Nil
Without option
C
Note 1)
Float type auto drain (N.C.)
+
Kt
Semi-standard
b Bowl
2
Note 2)
Metal bowl
+
c Flow direction
Nil
Flow direction: Left to right
R
Flow direction: Right to left
+
Ky
Option
ii
d
Pressure
gauge
Note 3)
Bracket
Nil
Without option
A
Round type pressure gauge (without limit indicator)
B
With bracket
C
Round type pressure gauge (without limit indicator), With bracket
Note 1) When the float type auto drain is selected, the fluid temperature range is −5 to 60°C (with no freezing), and the maximum operating pressure is 1.0
MPa. Take measures if the fluid temperature is likely to be out of the specified range due to the ambient temperature.
Note 2) Only metal bowl is available.
Note 3) The pressure gauge is shipped together, but not assembled. AW30: G43-10-01-X3 or AW40: G43-10-02-X3 is included.
· Option/Semi-standard: Select one each for
a to d.
· Option/Semi-standard symbol: When more
than one specification is required, indicate
in alphanumeric order.
Example) AW30-03C-2R-X2622A
ytrewq
Stainless steel 316 specification
2
AW
X2622
30 03
¡ External parts material: Stainless steel 316
¡ Ambient and fluid temperature: –40 to 80°C
¡ NACE International Standards compliant
The JIS component standards of the external parts and the component measurement
results of the certificate for materials are within the ANSI/NACE standards.

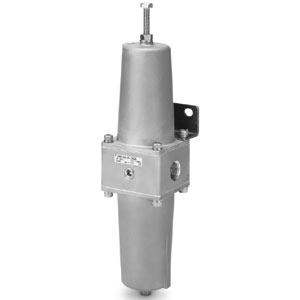

Filter Regulator
Stainless Steel 316 and Special Temperature Environment (–40°C) Specifications
AW30/40-X2622
