IS10E Pressure Switch with Female Pipe Adapter, AC/DC, Analog Indicator

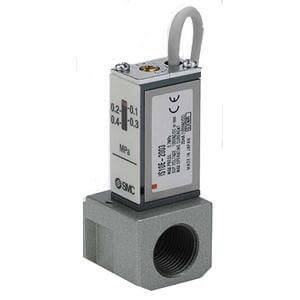

ISE10E is a pressure switch with a linear mechanical set point indicator, for modular installation with SMC's FRL units. The switch housing attaches to a threaded block for mounting inline with the FRL. The housing assembly includes a reed switch activated by a piston-mounted magnet. A screw adjusts the spring loading the piston to the switch point. Two pressure ranges are available, along with MPa and psi units on the setting scale. The adapter block has 5 port sizes, in Rc, NPT or G thread to mount to 3 FRL body sizes. IS10E is CE and RoHS compliant, with an IP40 enclosure rating.

Mechanical pressure switch with threaded adapter block for FRL mounting
Set pressure range: 0.1 to 0.4 MPa, or 0.1 to 0.6 MPa
Reed switch output of circuit voltage (NO below set point)
Electrical circuit: up to 100 V AC/DC
Repeatability: ±0.05% of F.S.
Hysteresis: Fixed 0.08 MPa or less
