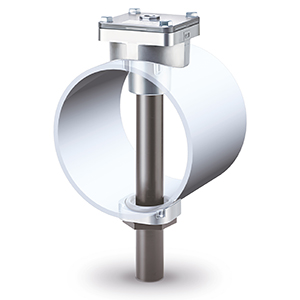

Series JSXFA Pulse Valve Valve for Dust Collector
3
How to Order
Series
JSXFA
Orifice diameter [mm]
Port size
Fluid Air
Min. operating pressure differential
14.5 psi (0.1 MPa)
130.53 psi (0.9 MPa)
130.53 psi (0.9 MPa)
Max. operating pressure differential
Max. system pressure
Fluid temperature
Ambient temperature -40 to 140º
F (-40 to 60ºC)
∗
1
-40 to 140ºF (-40 to 60ºC)
Weight
Compression fitting type
16.58oz (470g)
10.23oz (290g)
32.10oz (910g)
17.64oz (500g)
65.26oz (1850g)
43.39oz (1230g)Direct piping type
∗1 No condensation allowed
JSXFA
B06 RE 1
IN/OUT port size
06
3/4 (20A)
10
1 (25A)
14
1 1/2 (40A)
Orifice diameter of pilot valve
Symbol
Orifice Diameter
Nil
ø5mm or more
A
ø3mm or more
Pilot port size
Nil
1/4
1
1/8
Pilot valve orifice diameter: Special specification
A
For ø3 mm or larger and less than ø5 mm
Port size: 06, 10
Made to Order
Thread type
R
Rc
N
NPT
F
G
Piping
E
Compression fitting type
∗
1
F
Direct piping type
∗1 Seals and washers are included.
Fluid and ambient temperatures
B
−40 to 60°C
Symbol
2
(OUT)
1
(IN)
Caution
Selection of Pilot Valve
For the pilot valve orifice diameter, ø5 mm or larger is
recommended.
When the pilot orifice diameter is ø3 mm or larger and less
than ø5 mm, put “A” to the end of the product number for
made-to-order. The product may not operate correctly if the
pilot valve orifice diameter is inadequate. (port size: 3/4, 1)
Depending on the pilot piping port size
∗
1
or length, the
valve may not operate correctly.
∗1 The I.D. of the pilot piping must be larger than the pilot valve
orifice diameter to use. The maximum pilot piping I.D. is 10 mm.
Specifications
JSXFA B
A
Enter the standard
product number.
Compression
fitting type
Direct piping type
RoHS
Port size:
3/4, 1
JSXFA
Pilot piping
Pilot valve
Pilot port
Orifice diameter:
ø5 mm or larger
Exhaust
With/without silencer
Port size
06 10 14
Nil
Without
S
With — —
∗ Port size: 14 only
Select Nil for 06 and 10.
ø32 ø40 ø50
3/4 1 1/21
06 10 14
