SMC Hand Valves

• • Recommendation



  Hand Valve - Manual Lever Control, VH Series

  SMC

  Hand Valve VH Series that allows the direction of flow to be confirmed with a glance.Features· The flow direction can be confirmed with just a glance at the direction of the handle.

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

• • Recommendation

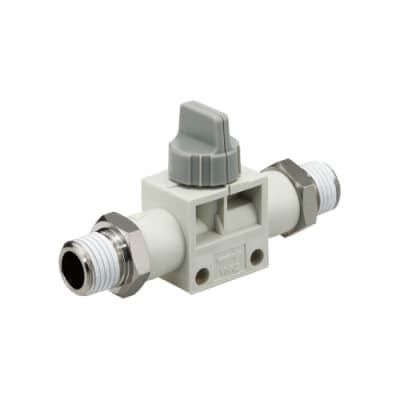

  Finger Valve - Manual Knob Control, VHK Series

  SMC

  Finger Valve VHK Series that makes it easy to distinguish between 2-port valves and 3-port valves by the color of the knobs.Features· Poppet valve construction that rarely suffers from seal defects.· The direction of the knob clearly indicates whether the valve is open or closed.

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

•

  Finger Valve - Manual Knob Control, VHK-A Series

  SMC

  [Features]・ The opening and closing of the valve is easily displayed by the direction of the knob・ Small knob operation force (0.04 to 0.14 N・m)・ With handle removal prevention function・ Large effective cross-section precision 2.0 to 17.5 mm2・ Poppet valve structure with few seal defects・ Series from tube outer diameter ø4・ 4 types can be selected according to the piping specifications・ The 3-port valve exhausts the residual pressure on the 2 (A) side with SHUT (There is no exhaust port)

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

•

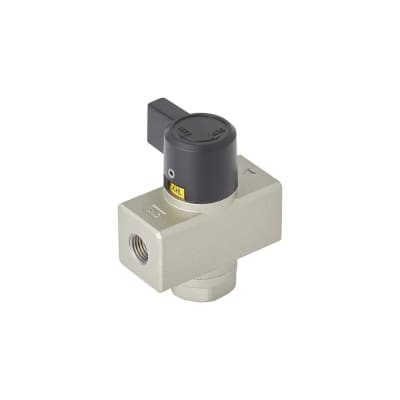

  Hand Valve - Residual Pressure Relief, 3 Port, VHS400/VHS500 Series

  SMC

  Residual Pressure Relief 3 Port Hand Valve VHS400/500 that allows the flow direction to be confirmed with just a glance at the direction of the handle.Features· A safety manual switch valve for preventing accidents that can be caused by residual pressure while performing maintenance on pneumatic systems .· The valve is compact with a large capacity.

  Configure Now

  Available as soon as	1 Day

  Stock Items Included

•

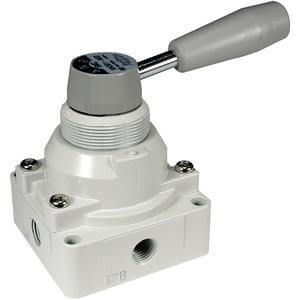

  VH, Hand Valve

  Series VH rotary hand valve's compact design and variety of flow rates make it ideal for a wide range of applications requiring manual directional control. The slide ring design makes the VH valve easy to operate while offering a high tolerance to contamination with its "self-cleaning, wiping action".

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

•

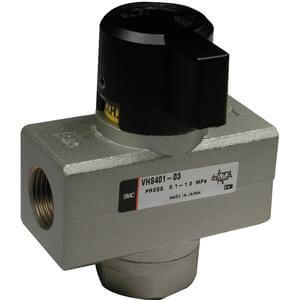

  VHS*0*, 3 Port Residual Pressure Relief Valve, Non-Modular

  The VHS series provides a convenient means of isolating supplied pressure in a pneumatic system and exhausting downstream pressure for maintenance purposes.  The units can be locked in the exhaust position and can be an integral part of an energy isolation system.  Air flow direction is easily identified by handle orientation and labelling.

  • Fluid: air
  • Operating pressure range: 0.1 to 1.0MPa
  • Effective area range mm ² (Cv):
    1(P) to 2(A) 21 - 93 (1.18 - 5.22);
    2A to 3(R) 35 - 105 (1.97 - 5.90)
  • Ambient & fluid temperature: -5 to 60° C
  • Required switching force: 7.5kgf (at 1.0MPa)

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

•

  VHK*, Finger Valve

  Finger valve series VHK has a large effective area of 2.0 to 17.5mm². This series begins with a minimum tube O.D of ø4. The valve direction clearly indicates whether the valve is open or closed (shut to open is counter- clockwise). Classification of knob by color difference facilitates distinction between 2 port valves (gray) and 3 port valves (blue). The optional flame resistant model's knob, whether using the 2 or 3 port valve, is red.

  • Finger valve, standard
  • 2 or 3 port available
  • Effective area: 2.0 to 17.5mm²
  • Max. operating pressure: 1.0MPa
  • Fluid: air

  Configure Now

  Available as soon as	Same Day

  Stock Items Included

•

  VHK*R, Flame Resistant Finger Valve

  Finger valve series VHK has a large effective area of 2.0 to 17.5mm². This series begins with a minimum tube O.D of ø4. The valve direction clearly indicates whether the valve is open or closed (shut to open is counter- clockwise). Classification of knob by color difference facilitates distinction between 2 port valves (gray) and 3 port valves (blue). The optional flame resistant model's knob, whether using the 2 or 3 port valve, is red.

  • Valve: 2 or 3 port (flame resistant)
  • Fluid: air
  • Max. operating pressure: 1.0MPa
  • Effective area: 2.0 to 17.5mm²
  • Ambient and fluid temperature: 0 to 60°C

  Configure Now

  Available as soon as	Same Day

  Stock Items Included
