AC10-60 (FRL), Modular Type, Air Filter/Regulator, Lubricator

SMC

The cost effective and clean looking AC series allows you to pick a combination of modular style air preparation equipment that best suits your needs. The series, available in 8 size options to ensure optimum performance, offers energy savings, with higher flow rates. Simple assembly and maintenance reduces downtime.

• Air filter, regulator and lubricator unit
• Clean looking, modular design
• Energy saving with high flow rate
• Compact spacer with bracket reduces total assembly space
• Optional embedded pressure gauge
• Improved installation
• Rc(PT), G(PF) or NPT threads

• Recommendation

Regulator - Filter, Lubricator, AC10-A to AC40-A Series

SMC

SMC modular-type F.R.L. combination unit.
[Features]
· Uses a transparent bowl guard.
· A transparent bowl guard with improved environmental resistance that provides all-round protection.
· The manufacturer has removed the window from the bowl guard and instead covered the entire internal bowl with a polycarbonate transparent bowl guard.
· Now, even if the environment changes and the bowl is exposed to corrosive chemicals or oil, the foreign matter will not stick directly to the pressurized bowl. This can help reduce the risk of the bowl breaking.
· Superior visibility: 360°
· The use of the transparent bowl guard allows you to check the status of the drain inside the filter bowl and to check the amount of residual oil in the lubricator from any angle.
· Weight reduction: reduced by up to 90 g
· Without corrosion. The use of a resin body ensures there is no rusting.

Regulator - Filter, Lubricator, AC20-B to AC60-B Series

SMC

[Features]
· Improved visibility and environmental resistance.
· The bowl is completely covered by transparent bowl guard.
-The inside can be seen from all angles (360°).
-The bowl is completely protected from the external environment, helping improve safety.
· Easy to work with.
-The element and bowl are combined into one unit, making it possible to replace the element by hand.

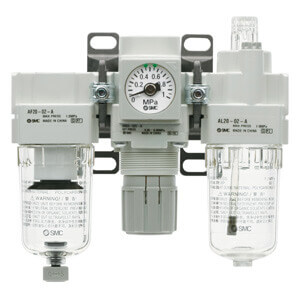

AC20-B to AC60-B, Air Filter, Regulator and Lubricator

SMC

SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

• Air filter, regulator and lubricator unit
• Clean looking, urban white, modular design
• Energy saving with high flow rate
• Transparent bowl guard
• Mounting interchangeable with existing product
• Improved installation
• Embedded gauge and pressure switch options available
• Rc, G, or NPT threads

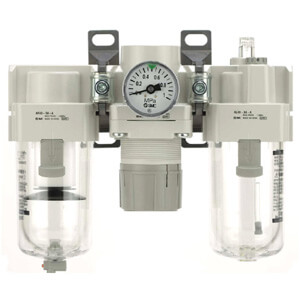

AC10-A to AC40-A, Air Filter, Regulator and Lubricator Combination

SMC

SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the existing modular AC line. The pressure drop across the regulator has been reduced creating a more efficient unit with a maximum set pressure of 100 psi. The element and bowl on the AW and AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AF series, depending on the body size. Bowls on the size 30 and 40 are now covered with a transparent bowl guard, completely protecting them from the environment, and making the interior contents visible from 360 degrees. The base color of the new AC-A series is urban white, maintaining a clean, modern look.

• Air filter, regulator and lubricator unit
• Clean looking, urban white, modular design
• Energy saving with high flow rate
• Transparent bowl guard
• New spacer for modular connection is interchangeable with existing product
• Improved installation
• Rc, G or NPT threads

AC20-D to AC60-D, Air Combination Units

SMC

The AC-D series of modular F.R.L. brings a modern appearance to SMC's line of air preparation equipment while maintaining the high performance of our other series.  The maximum set pressure of the AC-D is 125 psi allowing use in a broad range of applications.  Most of the features of the AC-A and -B have been incorporated into the AC-D - transparent bowl guards for full visibility; embedded gauges and pressure switches; reduced maintenance space and simplified element change on AF-D series filters.

• Modular design with uniform body style
• Mounting interchangeable with existing product
• Expanded range of piping adapters, interfaces and modular pressure switches
• Simplified assembly
• Rc, NPT, or G threads

Regulator - Filter, AC20B-B to AC60B-B Series

SMC

[Features]
· Improved visibility and environmental resistance.
· The bowl is completely covered by transparent bowl guard.
-The inside can be seen from all angles (360°).
-The bowl is completely protected from the external environment, helping improve safety.
· Easy to work with.
-The element and bowl are combined into one unit, making it possible to replace the element by hand.
· The amount of space required for maintenance has been reduced.

AC10A-40A (WL), Modular Type, Filter Regulator, Lubricator

SMC

The cost effective and clean looking AC series allows you to pick a combination of modular style air preparation equipment that best suits your needs. The series, available in 8 size options to ensure optimum performance, offers energy savings, with higher flow rates. Simple assembly and maintenance reduces downtime.

• Filter regulator and lubricator unit
• Clean looking, modular design
• Improved installation
• Compact spacer with bracket reduces total assembly space
• Optional embedded pressure gauge
• Rc(PT), G(PF) or NPT threads

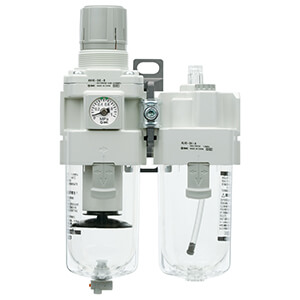

AC10A-A to AC40A-A, Filter Regulator and Lubricator

SMC

SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the existing modular AC line. The pressure drop across the regulator has been reduced creating a more efficient unit with a maximum set pressure of 100 psi. The element and bowl on the AW and AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AF series, depending on the body size. Bowls on the size 30 and 40 are now covered with a transparent bowl guard, completely protecting them from the environment, and making the interior contents visible from 360 degrees. The base color of the new AC-A series is urban white, maintaining a clean, modern look.

• Filter regulator and lubricator unit
• Clean looking, modular design
• One-piece element and bowl for easy replacement (AW)
• Transparent bowl guard for 360 degree visibility
• Rc(PT), G(PF) or NPT threads

• Recommendation

Regulator - Filter, AC10A-A to AC40A-A Series

SMC

Air Combination Filter Regulator + Lubricator with a bowl that is completely covered by transparent bowl guard.
Features
· The inside can be seen from all angles (360°).
· The bowl is protected from the external environment, ensuring high levels of safety.

Regulator - Filter, Lubricator, AC20A-B to AC60A-B Series

SMC

[Features]
· Improved visibility and environmental resistance.
· The bowl is completely covered by transparent bowl guard.
-The inside can be seen from all angles (360°).
-The bowl is completely protected from the external environment, helping improve safety.
· Easy to work with.
-The element and bowl are combined into one unit, making it possible to replace the element by hand.

AC20A-B to AC60A-B, Filter Regulator and Lubricator

SMC

SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

• Filter, regulator, and lubricator unit
• Clean looking, modular design
• One-piece element and bowl for easy replacement (AW)
• Transparent bowl guard for 360 degree visibility
• Embedded gauge and pressure switch options available
• Rc(PT), G(PF) or NPT threads

Regulator - Filter, AC10B-A to AC40B-A Series

SMC

SMC modular-type F.R.L. combination unit.
[Features]
· Uses a transparent bowl guard.
· A transparent bowl guard with improved environmental resistance that provides all-round protection.
· The manufacturer has removed the window from the bowl guard and instead covered the entire internal bowl with a polycarbonate transparent bowl guard.
· Now, even if the environment changes and the bowl is exposed to corrosive chemicals or oil, the foreign matter will not stick directly to the pressurized bowl. This can help reduce the risk of the bowl breaking.
· Superior visibility: 360°
· The use of the transparent bowl guard allows you to check the status of the drain inside the filter bowl and to check the amount of residual oil in the lubricator from any angle.
· Weight reduction: reduced by up to 90 g
· Without corrosion. The use of a resin body ensures there is no rusting.

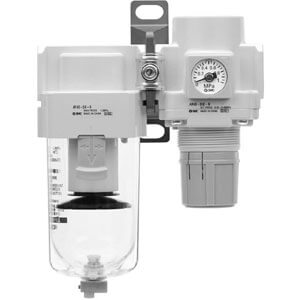

AC20B-B to AC60B-B, Air Filter and Regulator

SMC

SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

• Air filter and regulator unit
• Clean looking, urban white, modular design
• Element and bowl are in one-piece for easy replacement (AF)
• Transparent bowl guard provides 360 degree visibility
• Embedded gauge and pressure switch options available
• Rc(PT), G(PF), or NPT threads

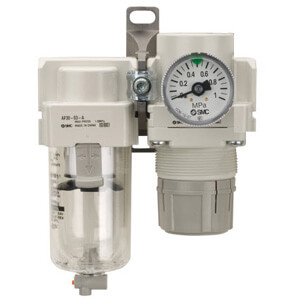

AC10B-A to AC40B-A, Air Filter and Regulator

SMC

SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the existing modular AC line. The pressure drop across the regulator has been reduced creating a more efficient unit with a maximum set pressure of 100 psi. The element and bowl on the AW and AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AF series, depending on the body size. Bowls on the size 30 and 40 are now covered with a transparent bowl guard, completely protecting them from the environment, and making the interior contents visible from 360 degrees. The base color of the new AC-A series is urban white, maintaining a clean, modern look.

• Air filter and regulator unit
• Clean looking, urban white, modular design
• Element and bowl are in one-piece for easy replacement (AF)
• Energy saving regulator (AR)
• Transparent bowl guard provides 360 degree visibility

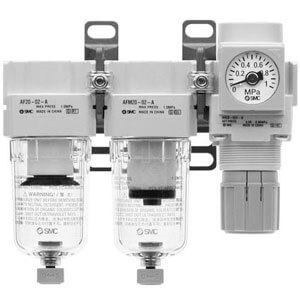

AC20C-B to AC40C-B, Air Filter, Mist Separator and Regulator

SMC

SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

• Air filter, mist separator, and regulator unit
• Clean looking, urban white, modular design
• Element and bowl are in one-piece for easy replacement (AF)
• Embedded gauge and pressure switch options available
• Transparent bowl guard provides 360 degree visibility
• Rc(PT), G(PF), or NPT threads

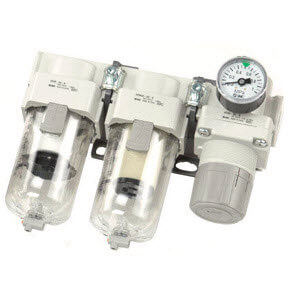

AC20C-A to AC40C-A, Air Filter, Mist Separator, Regulator

SMC

SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the existing modular AC line. The pressure drop across the regulator has been reduced creating a more efficient unit with a maximum set pressure of 100 psi. The element and bowl on the AW and AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AF series, depending on the body size. Bowls on the size 30 and 40 are now covered with a transparent bowl guard, completely protecting them from the environment, and making the interior contents visible from 360 degrees. The base color of the new AC-A series is urban white, maintaining a clean, modern look.

• Air filter, mist separator, and regulator unit
• Clean looking, urban white, modular design
• Element and bowl are in one-piece for easy replacement (AF)
• Energy saving regulator (AR)
• Transparent bowl guard provides 360 degree visibility

Regulator - Filter, Mist Separator, AC20C-B to AC40C-B Series

SMC

Air combination with better visibility and environmental resistance.
Features
· The bowl is completely covered by a transparent bowl guard.
· The inside can be seen from all angles (360°).
· The bowl is completely protected from the external environment, helping improve safety.
· Easy to work with.
· The element and bowl are combined into one unit, making it possible to replace the element by hand.
· The amount of space required for maintenance has been reduced.

Regulator - Filter, Mist Separator, AC20C-A to AC40C-A Series

SMC

SMC modular-type F.R.L. combination unit.
[Features]
· Uses a transparent bowl guard.
· A transparent bowl guard with improved environmental resistance that provides all-round protection.
· The manufacturer has removed the window from the bowl guard and instead covered the entire internal bowl with a polycarbonate transparent bowl guard.
· Now, even if the environment changes and the bowl is exposed to corrosive chemicals or oil, the foreign matter will not stick directly to the pressurized bowl. This can help reduce the risk of the bowl breaking.
· Superior visibility: 360°
· The use of the transparent bowl guard allows you to check the status of the drain inside the filter bowl and to check the amount of residual oil in the lubricator from any angle.
· Weight reduction: reduced by up to 90 g
· Without corrosion. The use of a resin body ensures there is no rusting.

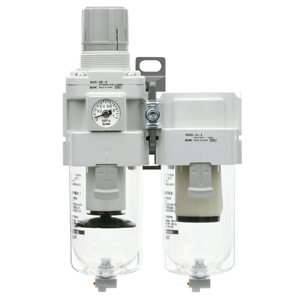

AC20D-B to AC40D-B, Filter Regulator and Mist Separator

SMC

SMC'S new AC-B series of modular type F.R.L. unit is available in six basic sizes and is interchangeable with the existing modular AC line. The AC-B series has a maximum set pressure of 125 psi and offers embedded gauge and pressure switch options not found in the AC-A. The element and bowl on the AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AFseries, depending on the body size. Bowls on size 30 and up are now covered with a transparent bowl guard, completely protecting them from the enviromnent, and making the interior contents visible from 360 degrees. The base color of the new AC-B is uban white, maintaining a clean, modern look.

• Filter, regulator, mist separator
• Clean looking, urban white, modular design
• Element and bowl are in one-piece for easy replacement
• Embedded gauge and pressure switch options available
• Transparent bowl guard provides 350 degree visibility
