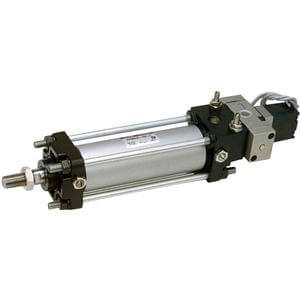

C(D)V3, Valve Mounted Cylinder, Double Acting

SMC

Series CV3 is a valve mounted, double acting cylinder. The operation style can be changed to normally retracted or normally extended. Built-in throttle valves are provided to enable speed adjustments in each direction. CV3 has six mounting options available and bore sizes range from 40mm to 100mm. The CV3 series is auto switch capable.

• Double acting, valve mounted
• Applicable bores (mm): 40, 50 , 63, 80, 100
• 8 mounting styles
• Auto switch capable

Air Cylinder - Valve Mounted, Double Acting, Single Rod, CV3 Series

SMC

[Features]
· Operation can be switched between rod extending when energized and rod retracting when energized.
· Easy maintenance and inspection.
· Manual operation mechanism equipped as standard (non-locking).
