Rodless Cylinder, MY1M, Mechanically Jointed - Slide Bearing

SMC

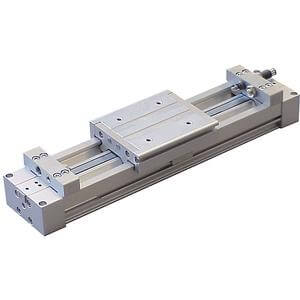

The MY1M Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. The integrated slide bearing internal guide provides lateral stability protecting it from side load impacts. Air cushions are standard and external shock absorbers are optional.

• Bore sizes: 16, 20, 25, 32, 40, 50, 63 mm
• Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000, 4000, 5000 mm
• Minimum operating pressure: 0.15 ~ 0.20 MPa (22 ~ 29 psi)
• Speed: 100~1000 mm/sec (w/o stroke adjustment bolt), 100~1500 mm/sec (external shock absorber)
• Long stroke option: up to 5000 mm (XB11), up to 3000 mm for 16 bore
• Auto switch capable

Rodless Cylinder - Mechanically Jointed, Slide Bearing Guide Type, MY1M Series

SMC

[Features]
· Guide-integrated type, slide bearing guide type that can be used for a wide range of transport applications.
· Simple guide type to which workpieces can be directly mounted.

MY1M, Mechanical Joint Rodless Cylinder,Slide Bearing Type

SMC

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

• Mechanical joint rodless cylinder with slide bearing
• Bore sizes: 16, 20, 25, 32, 40, 50, 63 (mm)
• Strokes up to 5000mm depending upon bore size
• With one or two stroke adjusters with or without shocks
• Variety of switches lead wire lengths
